Servicing a Coleman Tongue Jack

Thanks to knute on the Pop Up Times Message board for providing the details of this service he conducted to his 1999 Coleman Santa Fe

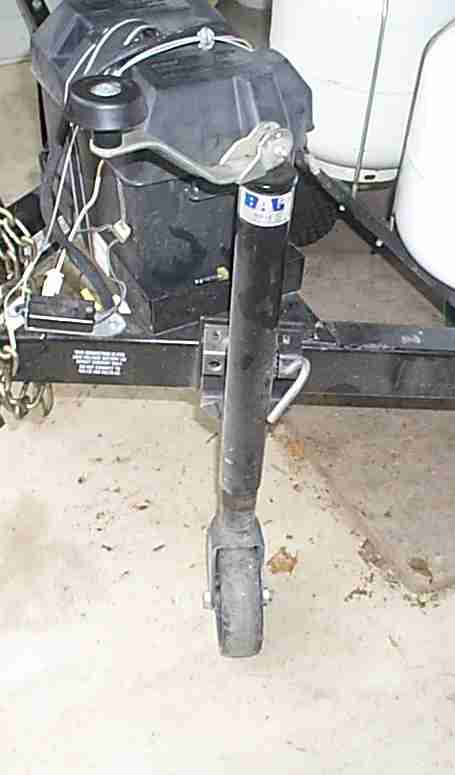

It should be noted that there are several manufacturers of tongue jacks used by pop up campers.  The instructions below are for a jack manufactured by BAL, and marked "800 Lbs"  Model 29005.  Parts or additional information is available from Norco Inc.

1.        Raise tongue using jack

2.        Chock both wheels, front and back

3.        Support tongue with an appropriate device. You could use a trailer dolly or 15-16 long piece of 4x4.

4.        Release locking pin to tilt jack assembly to approximately 45 degrees toward traveling position.

5.        Raise jack until it is fully extended.

6.        Remove bolt securing crank to jack using a 7/16 socket and box end wrench and remove crank.

7.        Slide lower jack assembly  out of upper housing

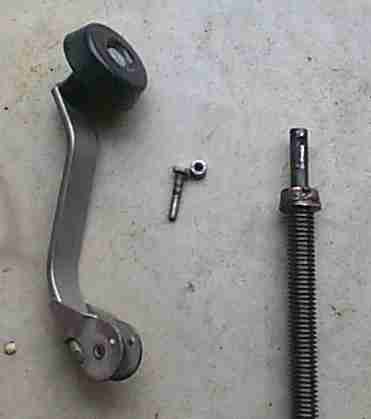

8.        Remove thrust bearing and thrust washer (located at top end of the threaded rod assembly in the bottom picture)

9.     Clean thrust bearing and thrust washer.  You may find it easier to use a parts cleaning solution which is available in small containers at most auto parts stores. If necessary, replace the thrust washer and seal.

11.     Repack thrust bearing with wheel bearing grease.

12.     Clean screw.

13.     Lubricate screw with wheel bearing grease, wide ribbon on one side of screw for entire length of screw.

14.     Place thrust washer back on assembly

15.     Place thrust bearing on top of thrust washer.

16.     Slide assembly back into upper jack housing.

17.     Install crank and bolt.

18.     Fully retract jack.

19.     Orient jack to the vertical position

20.     Raise jack to fully extended position.

21.     Remove 4x4 block.

22.     Lower jack to fully retracted position


Note:  Make sure that the trailer is properly blocked PRIOR to beginning any service.  Do not allow pets, children or any part of your body get under the tongue area while it is blocked up in the air.

This service should take less than 30 minutes to complete.  The only tools necessary are the 7/16 socket and box end wrench, and a small supply of bearing grease to repack the thrust bearing.
